MX split collar mounting brackets
MX4000 series of light curtains are designed to be mounted through split collar mounting brackets on each ending of emitter and detector units. The mounting hardware offered also includes vibration dumping rubber mounts. Please download the application note “Mounting of the MX4000 light curtains” for more details.
Two types of mounting brackets are currently offered:
- rugged injection molding plastic
- heavy duty solid aluminum
Plastic brackets are the most popular option for most applications and they are easy to mount (screws included).
They are sold as a package set of 4 brackets including vibration dumping rubber mounts (part # 02-4007-04)
Aluminum brackets are the toughest mounting option and they are as easy to mount as the plastic units (screws included).
They are sold as a package set of 4 brackets including vibration dumping rubber mounts (part # 02-4008-04)

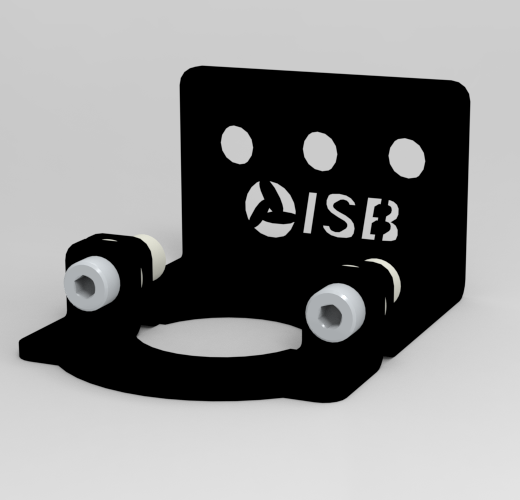

Steel brackets are the newest set of brackets from ISB, they are easy to mount, durable and has the same mounting holes as the aluminum and plastic brackets.
The package includes the screws, and vibration dumping rubber mounts.
(Part# 02-4014-04)
Technical Documents
Mounting of MX4000 light curtains
* You have to Login or Register to see this documents
